Product Introduction

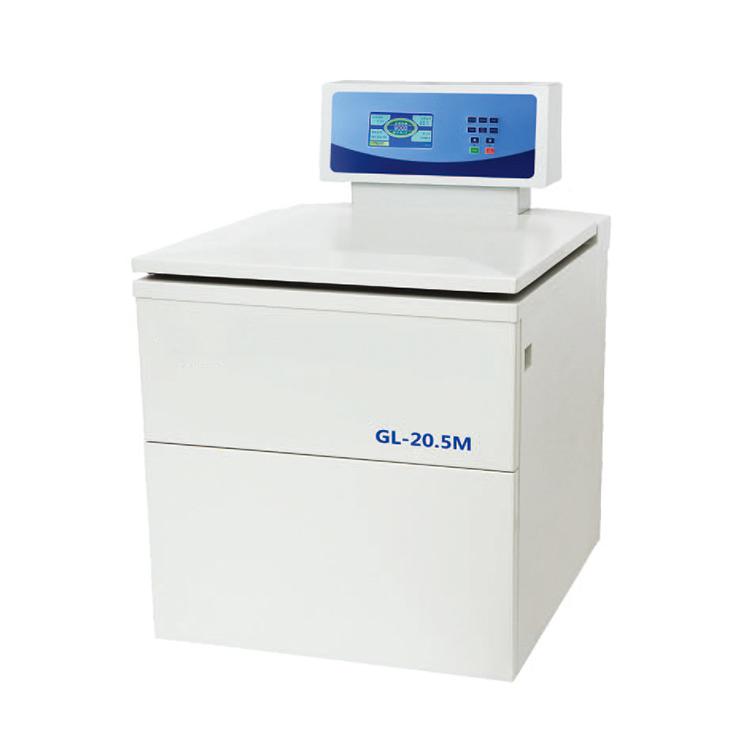

The GL-20.5M high-speed freezing centrifuge is designed specifically for customers with high rotational speed requirements and can be widely used in clinical medicine,bioengineering,genetic engineering,pharmaceuticals,universities and other fields.
Technical performance
•The max speed is 20500rpm,and the largest capacity of swing rotor is 4X750ml.
•It has micro-computer control,electronic lock and AC variableconversion motor which delivers high torque.
•Digital LCD screen make visualized operation conveniently.
•Imported compressor unit with Non-CFC refrigerant R404a.
•It has self-locking,over-speed detection,over-temperature detection,imbalance detection that is automatic alarm device.
•Essential configuration included rotor exchange,speed/RCF,time,temperature,9 levels acceleration and deceleration is the most economical choice.
•Silastic sealed ring comfort to GMP,US FDA certificated.
PRODUCT SPECIFICATIONS
| Model | GL-20.5M |
| Max speed | 20500r/min |
| Max RCF | 29200xg |
| Max capacity | 4x750ml |
| Speed accuracy | ±10r/min |
| Time setting | 1s-99h59min59s |
| Temperature setting | -20℃~+40℃ |
| Temperature accuracy | ±1℃ |
| Compressor unit | French Tecumseh Compressor Unit R404a |
| Noise | <65db(A) |
| Power supply | AC220V 50Hz 20A |
| Consumption | 1.5KW |
| Dimension(L×W×H) | 650x710x1100mm |
| Packing size(L×W×H) | 740x830x1300mm |
| Net weight(No rotor) | 170kg |
