一、Brief description

1.Adopt high-definition color screen,high-performance processor,convenient operation and rich display information.

2.All-metal shell,anti-interference.

3.PT100 temperature sensor.

4..USB PC interface:Provides automatic data collection function

二、Product introduction and parameters

1.Color screen,simple and clear operation interface,new users can operate it.

2.The metal shell has strong anti-interference,which is different from the plastic parts used in the industry.

3.PT100 high-precision temperature sensor.

4.High-speed chip processor can process data faster.

5.High strength small shaft is adopted,which is durable.

6.With 232 printing interface,it can directly connect to computer or micro printer to print data.

7.Timing function,automatic completion of non-Newtonian fluid,can ensure good consistency data.

8.Instrument viscosity curve,real-time viscosity,temperature,etc.

9.Automatic range display:the maximum measured viscosity under the current rotor and speed combination

The instrument can store data for customers to check and compare

三、Optional accessories

4、1.Special viscometer thermostatic bath

2.Standard solution

3.Micro printer,

四、Application

Ink,glue,latex,solvent-based adhesive,paint coating,oil,cosmetics,milk products,medicine,

juice,paste,solder paste,red glue,etc.

五、Model and technical parameters

Range(mpa.s)4~40,000,000

Rotation speed(RPM)

0.1~200

(step by step,stepless speed change,arbitrary switching)

Rotor configuration A-F 1 No.rotor each

measurement error±1%(FS)Newtonian fluid

Repeatability±0.2%(FS)Newtonian fluid

Viscosity temperature curve Output viscosity temperature time curve of the whole system

Display function

The LCD screen can display viscosity,shear rate,shear stress,rotating speed,

temperature,percentile torque

Rotor number and the maximum viscosity value of the selected rotor that can be measured at the current speed,etc

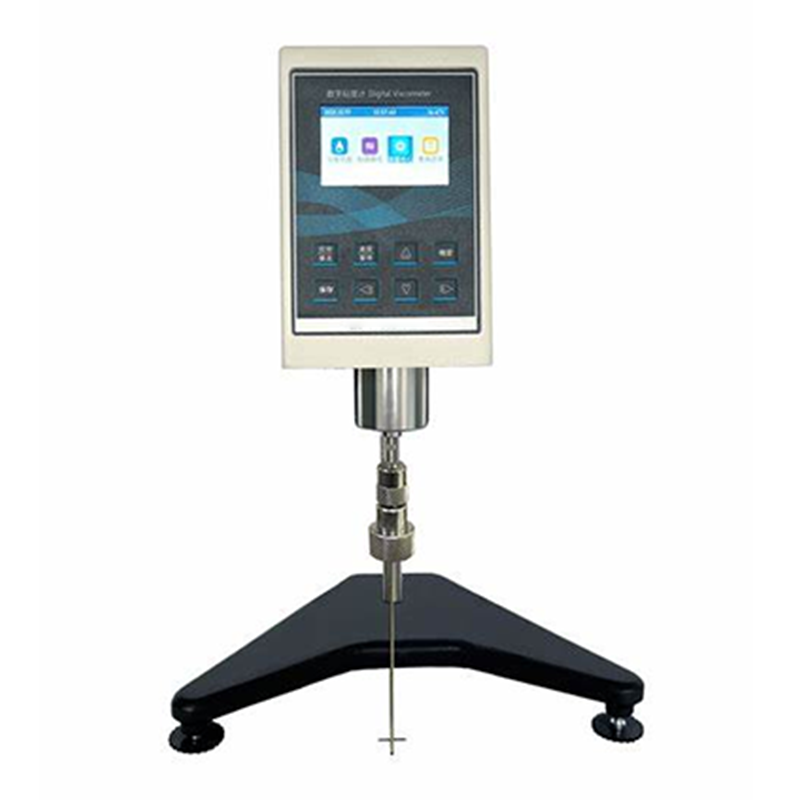

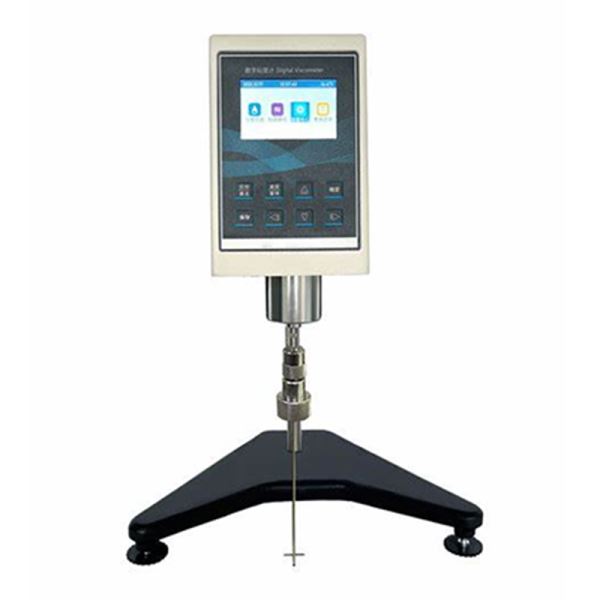

PX-0T Viscometer

Optional Temperature control equipment. KDC-1WB

rotor

range speed 0.1 50 100 200

T-A 2,000,000 4000 2000 1000

T-B 4,000,000 8000 4000 2000

T-C 10,000,000 20000 10000 5000

T-D 20,000,000 40000 20000 10000

T-E 50,000,000 100000 50000 25000

T-F 100,000,000 200000 100000
