HT-XZ100
Tel:+8618851718883
Introduction

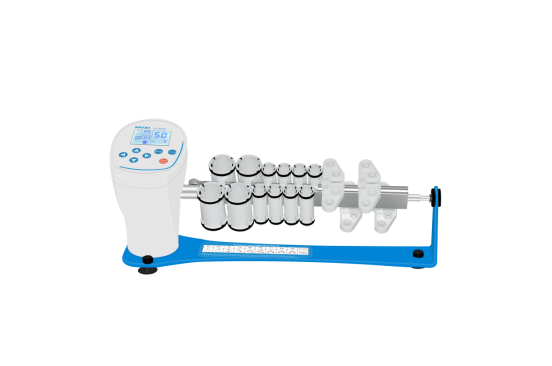

360 °Rotation Bench-top Microbiology laboratory Rotary shaker

Product Applications:

The HT-XZ100 rotary mixer uses a DC motor and microcomputer control technology to provide efficient and gentle mixing to keep

biological samples in suspension. The unique knob operation mode is simple and easy to use. By changing different trays, it is able to mix all kinds

of common test tubes, such as 1.5ml~50ml. Ideal for sample mixing in similar applications such as blood coagulation prevention, latex diagnostics,

immunoprecipitation, etc.



Rotary Installation

1. Place the rotary mixer horizontally on the workbench

2. Insert the power adapter plug into the power socket on the back of the instrument, and connect the other end to the power grid with a voltage between 100-240V

3. Install suitable test tubes on the test tube rack to secure them in place



Features

● LCD real-time display of timing time and speed value;

● 2 additional self-programming programs (7 bands editable for each self-programming program), 9 different self-programming programs (rotation and vibration) to meet different needs.

● Knob operation mode, easy to use;

● 360°~-360° rotating vibration at any angle; adjustable vibration time and vibration speed at any angle;

● Any set time within the range of 1min-99h59m, with automatic beeping at the end of operation;

● DC motor drive, precise speed and maintenance-free.

● A variety of trays are available, suitable for 1.5/2.0ml, 10/15ml, 50ml and similar diameter centrifuge tubes, widely used.

Product Parameters

Model

HT-XZ100

Speed Range

0~99rpm

Speed Display

LCD

Time Set

1~99h59

Shaking mode

Orbital shaking

Input power

DC12V

Power

12W

Exterior Dimension

440*135*280mm

Net weight

2kg

The optional racks

L1:10*15ml*22

L2:50ml*12(vertical type)

L3:10*15ml

L4:50ml*12(horizontal type)

L5:1.5ml/2.0ml*36

L6:15ml*8+50ml*4+1.5/2.0ml*16
