TGL-16.5M Economical Model Tabletop Micro-Refrigerated Centrifuge
Product Introduction

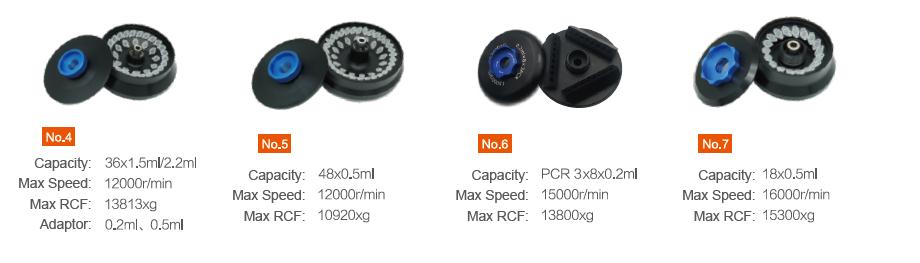

TGL-16.5M desktop micro high-speed freezing centrifuge, compact in size and low in noise. There are not only micro rotors but also PCR tube rotors. Suitable for small-scale centrifugation in hospitals, research institutions, and laboratories of higher education institutions at all levels.
Technical performance
• It has micro-computer control, electronic lock and AC variableconversionmotor which delivers high torque.
• Digital LCD screen make operation conveniently.
• Imported compressor unit with Non-CFC refrigerant R134a.
• It has self-locking, over-speed detection, over-temperature detection, imbalance detection that is automatic alarm device.
• It has 9 levels acceleration and 10 levels deceleration to be setting according to the different requirement. Slow down freely is available.
• Very fast acceleration and deceleration reaches some rotors in less than 20sec.
• Silastic sealed ring comfort to GMP, US FDA certificated.
|
Model
|
TGL-16.5M
|
|
Max speed
|
16500r/min
|
|
Max RCF
|
21532xg
|
|
Max capacity
|
36×1.5ml/2.2ml
|
|
Speed accuracy
|
± 30r/min
|
|
Time setting
|
1min~99h 59min
|
|
Temperature setting
|
-20 ℃ ～ +40 ℃
|
|
Temperature accuracy
|
±1 ℃
|
|
Compressor unit
|
French Tecumseh Compressor Unit R134a
|
|
Noise
|
<65db(A )
|
|
Power supply
|
AC110V/AC220V, 50Hz-60Hz
|
|
Consumption
|
1kw
|
|
Dimension(L×W×H)
|
280mm×540mm×300mm
|
|
Packing size(L×W×H)
|
480mm×670mm×590mm
|
|
Net weight (No rotor)
|
30kg
|
