DL-6M low speed large capacity refrigerated centrifuge
Category: Centrifuge
Tag: low speed large capacity refrigerated centrifuge
Product Introduction
DL-6M low speed large capacity refrigerated centrifuge is designed specifically for customers with high capacity requirements. With a large sample processing capacity, it is an ideal product in the fields of central blood stations, pharmaceuticals, bioengineering, and more.
Technical performance
•The max capacity of swing rotor is 6X1200ml.
• It has micro-computer control, electronic lock and AC variable-conversion motor which delivers high torque.
• LCD touch screen make visualized operation conveniently. (L600R)
• Imported compressor unit with Non-CFC refrigerant R404a.
• Automatic rotor recognition make safety for multiple rotors choice. (L600R)
• Up to 100 user programs storage meet more demands. (L600R)
• It has self-locking, over-speed detection, over-temperature detection,imbalance detection that is automatic alarm device.
• It has 9 levels acceleration and 10 levels deceleration to be setting according to the different requirement. Slow down freely is available. (L600R)
• 9 levels acceleration and deceleration. (DL-6M)
• Silastic sealed ring comfort to GMP, US FDA certificated.
Specification
Model
|
DL-6M
|
Max speed
|
6000r/min
|
Max RCF
|
6680xg
|
Max capacity
|
6x1200ml
|
Speed accuracy
|
± 10r/min
|
Time setting
|
1s~99h 59min59s
|
Temperature setting
|
-20 ℃ ~ +40 ℃
|
Temperature accuracy
|
±1 ℃
|
Compressor unit
|
French Tecumseh Compressor Unit R404a
|
Noise
|
<65db(A )
|
Power supply
|
AC220V, 50Hz, 30A
|
Consumption
|
5kw
|
Rotor

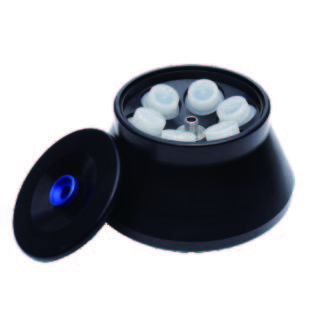

![](http://s.alicdn.com/@sc04/kf/H521f5f7375da4a4885bbc485619a59ear/272835347/H521f5f7375da4a4885bbc485619a59ear.jpg?quality=close)
Capacity:6x500ml
Max Speed:6000r/min
Max RCF:6680xg
Adaptor:50ml、100ml、250ml

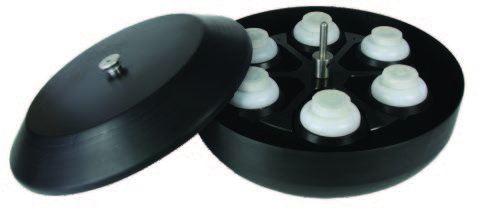

![](http://s.alicdn.com/@sc04/kf/H39b7023e4d6b411aac1c3a239519e5b4F/272835347/H39b7023e4d6b411aac1c3a239519e5b4F.jpg?quality=close)
Capacity:6x1200ml
Max Speed:4200r/min
Max RCF:5100xg
![](http://s.alicdn.com/@sc04/kf/H89fd680cb9b44d0a81d940decf00f568F/272835347/H89fd680cb9b44d0a81d940decf00f568F.jpg?quality=close)
1200ml
Round Bucket
![](http://s.alicdn.com/@sc04/kf/Hdf044ba03dbf4875b3f442e4a6e5436cZ/272835347/Hdf044ba03dbf4875b3f442e4a6e5436cZ.jpg?quality=close)
6x19x10ml
Internal Thread
![](http://s.alicdn.com/@sc04/kf/Hd787b743153e433dbe21ddf4b0f28864y/272835347/Hd787b743153e433dbe21ddf4b0f28864y.jpg?quality=close)
6x15x15ml
![](http://s.alicdn.com/@sc04/kf/H598628c3cb854197bb99c938270a4badQ/272835347/H598628c3cb854197bb99c938270a4badQ.jpg?quality=close)
6x13x20ml
![](http://s.alicdn.com/@sc04/kf/Hce602a4daefa422cb9216627484b4004E/272835347/Hce602a4daefa422cb9216627484b4004E.jpg?quality=close)
1200ml
PP Bottle
![](http://s.alicdn.com/@sc04/kf/Hd5f5cd51de8f421fb667c30646262dc6I/272835347/Hd5f5cd51de8f421fb667c30646262dc6I.jpg?quality=close)
6x5x50ml
![](http://s.alicdn.com/@sc04/kf/H38b616b061c0413192579bf4acc3b2b79/272835347/H38b616b061c0413192579bf4acc3b2b79.jpg?quality=close)
6x3x100ml
![](http://s.alicdn.com/@sc04/kf/Hbd6de033c8b34e1091be807a9c425d65E/272835347/Hbd6de033c8b34e1091be807a9c425d65E.jpg?quality=close)
6x250ml
![](http://s.alicdn.com/@sc04/kf/Hd5ea077b5fb3436d939acde9177cbda1n/272835347/Hd5ea077b5fb3436d939acde9177cbda1n.jpg?quality=close)
1200ml
Oval Bucket
![](http://s.alicdn.com/@sc04/kf/Hbd6de033c8b34e1091be807a9c425d65E/272835347/Hbd6de033c8b34e1091be807a9c425d65E.jpg?quality=close)
6x300ml
![](http://s.alicdn.com/@sc04/kf/H37562adc1cb649a68c22aeb5e3ba52937/272835347/H37562adc1cb649a68c22aeb5e3ba52937.jpg?quality=close)
6x500ml
![](http://s.alicdn.com/@sc04/kf/Hd29fa61494e947bb9608ba4e3a2ffa3dY/272835347/Hd29fa61494e947bb9608ba4e3a2ffa3dY.jpg?quality=close)
6x1000ml
![](http://s.alicdn.com/@sc04/kf/Haec046acecb54917904f405f20626fcdY/272835347/Haec046acecb54917904f405f20626fcdY.jpg?quality=close)
316L SS
Bucket
